Festo
556988

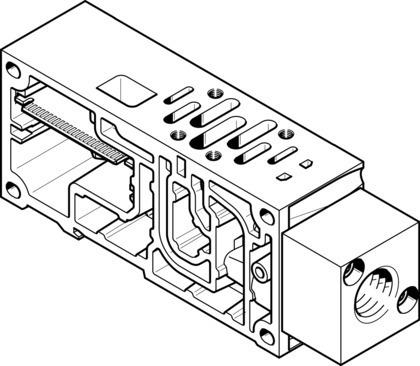

Manifold sub-base VABV-S6-1Q-N12
The Festo 556988 is a 570 g industrial component featuring a 43 mm width and a 1/2 NPT pneumatic connection 1. Built with a die-cast aluminum plate, this RoHS compliant part achieves corrosion resistance class 0 with no corrosion stress and VDMA24364-B1/B2-L LABS conformity. It meets EU low voltage directive CE marking requirements, withstands severity level 2 vibration and shock per FN and EN standards, and requires a switching frequency of at least once a month for forced dynamization. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 556988
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 556988.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 43 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Note on forced dynamization
- Switching frequency at least once a month
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 570 g
- Pneumatic connection 1
- 1/2 NPT
- Note on materials
- RoHS compliant
- Plate material
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 556988. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
