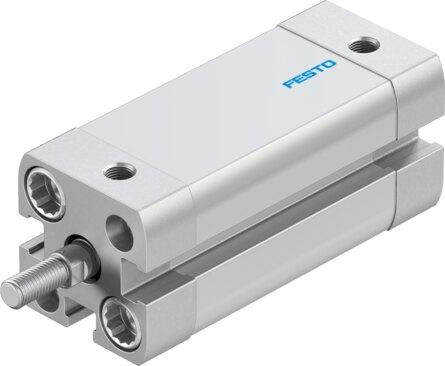

Reference imageConfirm configuration by manufacturer part number.
Festo
557023
Compact cylinder ADN-1/2"-1 1/4"-A-P-A
The Festo 557023 is a double-acting industrial component featuring a 1/2-inch piston diameter, a 1.25-inch stroke, and a 10-32 UNF-2A piston rod thread based on the ISO 21287 norm. This unit incorporates elastic cushioning rings at both ends, a profile barrel structural design, and position sensing via a proximity switch for operation within a pressure range of 14.5 psi to 145 psi using compressed air. It delivers a theoretical retracting force of 11.5 lbf and advancing force of 15.3 lbf at 6 bar, operating within an ambient temperature range of -4 °F to 176 °F. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557023
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557023.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1.25 in
- Piston diameter
- 1/2"
- Piston rod thread
- 10-32 UNF-2A
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.052 ft-lbf
- Theoretical force at 6 bar, retracting
- 11.5 lbf
- Theoretical force at 6 bar, advancing
- 15.3 lbf
- Moving mass at 0 mm stroke
- 0.319 oz
- Additional moving mass per 10 mm stroke
- 0.425 oz
- Basic weight with 0 mm stroke
- 2.73 oz
- Additional weight per 10 mm stroke
- 0.071 oz
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- 10-32 UNF-2B
