Festo
557036

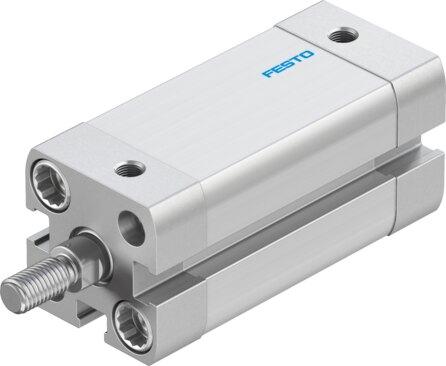

Compact cylinder ADN-5/8"-1 1/4"-A-P-A
This Festo industrial component (Part Number 557036) is a double-acting pneumatic cylinder featuring a 5/8" piston diameter, a 1.25 in stroke, and an external 10-32 UNF-2A piston rod thread based on the ISO 21287 norm. Built with a profile barrel, piston, and single-end piston rod, it operates within a pressure range of 14.5 psi to 145 psi (1 bar to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and accommodates ambient temperatures from -4 °F to 176 °F. The unit incorporates elastic cushioning pads at both ends, position sensing via proximity switch, and delivers a theoretical force of 27.2 lbf advancing and 20.2 lbf retracting at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557036
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557036.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1.25 in
- Piston diameter
- 5/8"
- Piston rod thread
- 10-32 UNF-2A
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.111 ft-lbf
- Theoretical force at 6 bar, retracting
- 20.2 lbf
- Theoretical force at 6 bar, advancing
- 27.2 lbf
- Moving mass at 0 mm stroke
- 0.531 oz
- Additional moving mass per 10 mm stroke
- 0.496 oz
- Basic weight with 0 mm stroke
- 2.8 oz
- Additional weight per 10 mm stroke
- 0.283 oz
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- 10-32 UNF-2B
