Festo
557067

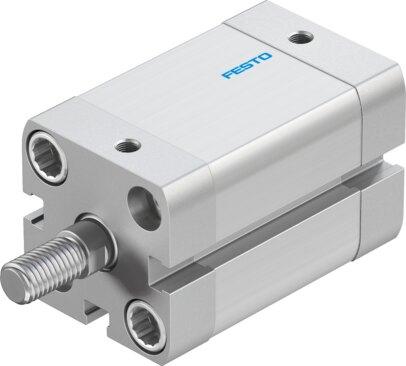

Compact cylinder ADN-1"-1"-A-P-A
Engineered by Festo under part number 557067, this double-acting industrial component features a 1-inch piston diameter, a 1-inch stroke, and a 5/16-24 UNF-2A external piston rod thread based on the ISO 21287 norm. Built with a profile barrel, piston, and single-end piston rod, it operates on compressed air from 14.5 psi to 145 psi with elastic cushioning rings at both ends and position sensing via proximity switch. The unit delivers a theoretical retracting force of 55.5 lbf and advancing force of 66.3 lbf at 6 bar, functioning across an ambient temperature range of -4 °F to 176 °F with a moderate corrosion resistance class of 2. Please submit your exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557067
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557067.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 in
- Piston diameter
- 1"
- Piston rod thread
- 5/16-24 UNF-2A
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.221 ft-lbf
- Theoretical force at 6 bar, retracting
- 55.5 lbf
- Theoretical force at 6 bar, advancing
- 66.3 lbf
- Moving mass at 0 mm stroke
- 1.06 oz
- Additional moving mass per 10 mm stroke
- 0.814 oz
- Basic weight with 0 mm stroke
- 5.52 oz
- Additional weight per 10 mm stroke
- 0.212 oz
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- 10-32 UNF-2B
