Festo
557069

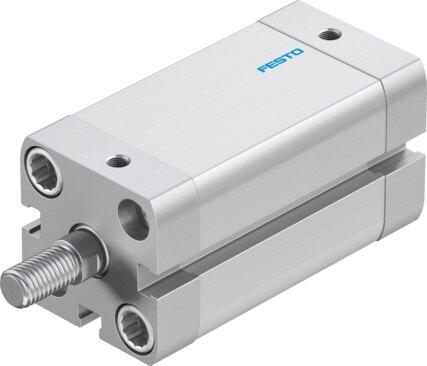

Compact cylinder ADN-1"-1 1/2"-A-P-A
The Festo 557069 is a double-acting industrial component built on the ISO 21287 norm featuring a 1-inch piston diameter, a 1.5-inch stroke, and an external 5/16-24 UNF-2A piston rod thread at one end. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 14.5 psi to 145 psi pressure range, this unit delivers theoretical forces of 55.5 lbf retracting and 66.3 lbf advancing at 6 bar. It incorporates elastic cushioning rings at both ends, position sensing via proximity switch, and a profile barrel structural design rated for ambient temperatures between -4 °F and 176 °F. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557069
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557069.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1.5 in
- Piston diameter
- 1"
- Piston rod thread
- 5/16-24 UNF-2A
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.221 ft-lbf
- Theoretical force at 6 bar, retracting
- 55.5 lbf
- Theoretical force at 6 bar, advancing
- 66.3 lbf
- Moving mass at 0 mm stroke
- 1.06 oz
- Additional moving mass per 10 mm stroke
- 0.814 oz
- Basic weight with 0 mm stroke
- 5.52 oz
- Additional weight per 10 mm stroke
- 0.212 oz
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- 10-32 UNF-2B
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 557069. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
