Name: Festo 557071 Compact cylinder ADN-1"-2 1/2"-A-P-A
Brand: Festo

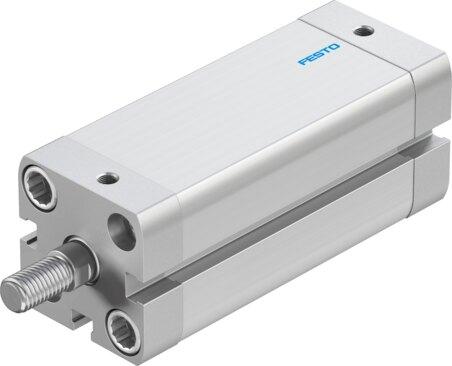

Compact cylinder ADN-1"-2 1/2"-A-P-A

The Festo 557071 is a double-acting industrial component featuring a 1-inch piston diameter, a 2.5-inch stroke, and a 5/16-24 UNF-2A external piston rod thread based on the ISO 21287 norm. Designed with elastic cushioning rings at both ends, a profile barrel structure, and position sensing via proximity switch, it operates within a pressure range of 14.5 psi to 145 psi and an ambient temperature range of -4 °F to 176 °F utilizing compressed air according to ISO 8573-1:2010 [7:4:4]. This unit delivers a theoretical force of 66.3 lbf advancing and 55.5 lbf retracting at 6 bar, exhibits a moderate corrosion resistance class (CRC 2), and accommodates any mounting position with optional oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 557071
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 557071.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 2.5 in
Piston diameter: 1"
Piston rod thread: 5/16-24 UNF-2A
Based on norm: ISO 21287
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Piston rod end: External thread
Structural design: Piston | Piston rod | Prole barrel
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -4 °F...176 °F
Impact energy in the end positions: 0.221 ft-lbf
Theoretical force at 6 bar, retracting: 55.5 lbf
Theoretical force at 6 bar, advancing: 66.3 lbf
Moving mass at 0 mm stroke: 1.06 oz
Additional moving mass per 10 mm stroke: 0.814 oz
Basic weight with 0 mm stroke: 5.52 oz
Additional weight per 10 mm stroke: 0.212 oz
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: 10-32 UNF-2B
