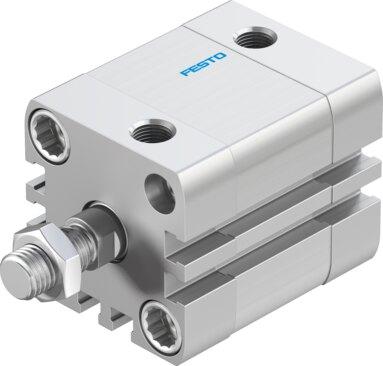

Name: Festo 557082 Compact cylinder ADN-1 1/4"-1/2"-A-P-A
Brand: Festo

Compact cylinder ADN-1 1/4"-1/2"-A-P-A

The Festo part number 557082 is a double-acting industrial component based on the ISO 21287 norm, featuring a 1 1/4" piston diameter, a 0.5 in stroke, and a 3/8-24 UNF-2A external piston rod thread. Designed with a profile barrel, piston, and piston rod at one end, this unit utilizes elastic cushioning rings at both ends and enables position sensing via proximity switch. It operates within a pressure range of 14.5 psi to 145 psi using compressed air as per ISO 8573-1:2010 [7:4:4], supporting oil lubrication and a moderate corrosion resistance class (CRC 2) across an ambient temperature of -4 °F to 176 °F. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 557082
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 557082.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 0.5 in
Piston diameter: 1 1/4"
Piston rod thread: 3/8-24 UNF-2A
Based on norm: ISO 21287
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Piston rod end: External thread
Structural design: Piston | Piston rod | Prole barrel
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -4 °F...176 °F
Impact energy in the end positions: 0.295 ft-lbf
Theoretical force at 6 bar, retracting: 93.3 lbf
Theoretical force at 6 bar, advancing: 109 lbf
Moving mass at 0 mm stroke: 2.12 oz
Additional moving mass per 10 mm stroke: 1.06 oz
Basic weight with 0 mm stroke: 9.38 oz
Additional weight per 10 mm stroke: 0.319 oz
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: 1/8 NPT
