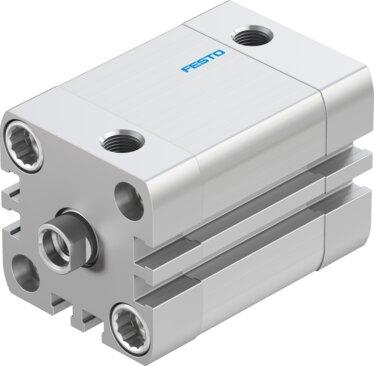

Compact cylinder ADN-1 1/4"-1"-I-P-A
The Festo part number 557093 is a double-acting industrial component featuring a 1-inch stroke, a 1 1/4-inch piston diameter, and a 5/16-24 UNF-2B internal thread on the piston rod end. Built on the ISO 21287 norm with a profile barrel structural design, it incorporates elastic cushioning rings at both ends and operates within a pressure range of 14.5 psi to 145 psi using compressed air. The unit delivers a theoretical force of 93.3 lbf retracting and 109 lbf advancing at 6 bar, while accommodating any mounting position and position sensing via proximity switch. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557093
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557093.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 in
- Piston diameter
- 1 1/4"
- Piston rod thread
- 5/16-24 UNF-2B
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.295 ft-lbf
- Theoretical force at 6 bar, retracting
- 93.3 lbf
- Theoretical force at 6 bar, advancing
- 109 lbf
- Moving mass at 0 mm stroke
- 2.12 oz
- Additional moving mass per 10 mm stroke
- 1.06 oz
- Basic weight with 0 mm stroke
- 9.38 oz
- Additional weight per 10 mm stroke
- 0.319 oz
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- 1/8 NPT
