Festo
557146

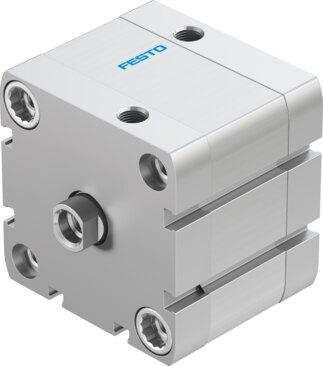

Compact cylinder ADN-2 1/2"-1/2"-I-P-A
The Festo 557146 is a double-acting industrial component with a 2 1/2" piston diameter, a 0.5 in stroke, and a profile barrel structural design featuring a piston rod with an internal 3/8-24 UNF-2B thread at one end. Built on the ISO 21287 norm with elastic cushioning rings at both ends, this component operates on compressed air from 14.5 psi to 145 psi across an ambient temperature range of -4 °F to 176 °F. It achieves a theoretical force of 420 lbf advancing and 393 lbf retracting at 6 bar, while supporting position sensing via proximity switches and offering moderate corrosion resistance (CRC 2). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557146
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557146.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.5 in
- Piston diameter
- 2 1/2"
- Piston rod thread
- 3/8-24 UNF-2B
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.959 ft-lbf
- Theoretical force at 6 bar, retracting
- 393 lbf
- Theoretical force at 6 bar, advancing
- 420 lbf
- Moving mass at 0 mm stroke
- 6.37 oz
- Additional moving mass per 10 mm stroke
- 2.09 oz
- Basic weight with 0 mm stroke
- 25.6 oz
- Additional weight per 10 mm stroke
- 0.566 oz
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- 1/8 NPT
