Reference imageConfirm configuration by manufacturer part number.
Festo
557208

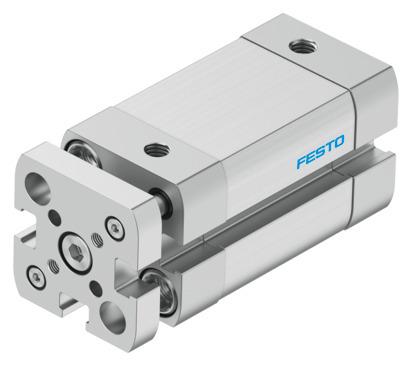

Compact air cylinder ADNGF-5/8"-3/4"-P-A
The Festo 557208 is an ISO 21287 compliant double-acting industrial component featuring a 5/8" piston diameter and a 0.75 in stroke within a profile barrel structural design complete with a guide rod and yoke for torsion protection. This unit incorporates elastic cushioning rings at both ends, accommodates compressed air operating media according to ISO 8573-1:2010 [7:4:4] across an operating pressure range of 1 bar to 10 bar, and provides position sensing for proximity sensors in any mounting position. Operating within an ambient temperature range of -4 °F to 176 °F, it delivers theoretical forces of 20.2 lbf retracting and 27.2 lbf advancing at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557208
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557208.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.75 in
- Piston diameter
- 5/8"
- Based on norm
- ISO 21287
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- For proximity sensor
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -4 °F...176 °F
- Impact energy in the end positions
- 0.111 ft-lbf
- Theoretical force at 6 bar, retracting
- 20.2 lbf
- Theoretical force at 6 bar, advancing
- 27.2 lbf
- Moving mass at 0 mm stroke
- 1.03 oz
- Additional moving mass per 10 mm stroke
- 0.566 oz
- Basic weight with 0 mm stroke
- 3.29 oz
- Additional weight per 10 mm stroke
- 0.212 oz
- Type of mounting
- Optionally: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- 10-32 UNF-2B
- Flange screws material
- Steel
- Cover material
- Wrought aluminum alloy, anodized
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 557208. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
