Name: Festo 557246 Compact air cylinder ADNGF-1 5/8"-1 1/4"-P-A
Brand: Festo

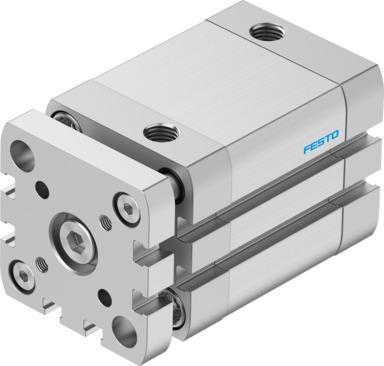

Compact air cylinder ADNGF-1 5/8"-1 1/4"-P-A

The Festo 557246 is a double-acting industrial component featuring a 1.25-inch stroke, a 1 5/8-inch piston diameter, and a profile barrel design complying with ISO 21287. Built with a guide rod and yoke for torsion protection and elastic cushioning rings at both ends, this unit operates within a 1 bar to 10 bar pressure range and an ambient temperature span of -4 °F to 176 °F. It delivers a theoretical force of 170 lbf advancing and 154 lbf retracting at 6 bar using compressed air per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 557246
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 557246.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 1.25 in
Piston diameter: 1 5/8"
Based on norm: ISO 21287
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Structural design: Piston | Piston rod | Prole barrel
Position sensing: For proximity sensor
Protection against torsion/guide: Guide rod with yoke
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -4 °F...176 °F
Impact energy in the end positions: 0.516 ft-lbf
Theoretical force at 6 bar, retracting: 154 lbf
Theoretical force at 6 bar, advancing: 170 lbf
Moving mass at 0 mm stroke: 5.81 oz
Additional moving mass per 10 mm stroke: 1.59 oz
Basic weight with 0 mm stroke: 15.2 oz
Additional weight per 10 mm stroke: 0.602 oz
Type of mounting: Optionally: | With through-hole | With internal thread | With accessories
Pneumatic connection: 1/8 NPT
Flange screws material: Steel
Cover material: Wrought aluminum alloy, anodized
Seals material: NBR
