557251

Name: Festo 557251 Compact air cylinder ADNGF-2"- -
Brand: Festo

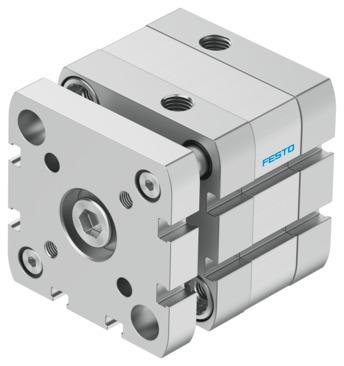

Compact air cylinder ADNGF-2"- -

The Festo 557251 is an ISO 21287 industrial component featuring a 2-inch piston diameter, an adjustable stroke ranging from 0.197 inches to 11.8 inches, and a double-acting mode of operation. Built with a piston, piston rod, and profile barrel, this unit includes elastic cushioning rings at both ends, a guide rod with a yoke for torsion protection, and provisions for position sensing via proximity sensors. It operates within a pressure range of 1 bar to 10 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 238 lbf retracting and up to 265 lbf advancing at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 557251
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 557251.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 0.197 in...11.8 in
Piston diameter: 2"
Based on norm: ISO 21287
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Structural design: Piston | Piston rod | Prole barrel
Position sensing: For proximity sensor
Variants: Through piston rod
Protection against torsion/guide: Guide rod with yoke
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -4 °F...176 °F
Impact energy in the end positions: 0.738 ft-lbf
Theoretical force at 6 bar, retracting: 238 lbf
Theoretical force at 6 bar, advancing: 238 lbf...265 lbf
Moving mass at 0 mm stroke: 10.2 oz
Additional moving mass per 10 mm stroke: 2.27 oz
Basic weight with 0 mm stroke: 24.3 oz
Additional weight per 10 mm stroke: 1.03 oz
Type of mounting: Optionally: | With through-hole | With internal thread | With accessories
Pneumatic connection: 1/8 NPT
Flange screws material: Steel
Cover material: Wrought aluminum alloy, anodized
