Festo
557377

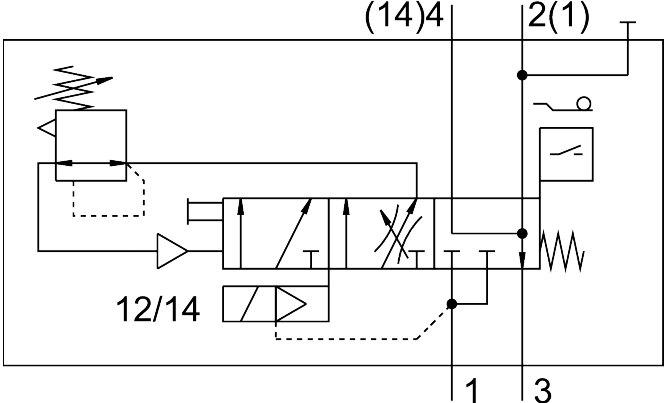

Soft-start valve VABF-S6-1-P5A4-G12-4-1-P
The Festo 557377 is a piloted piston gate valve based on the ISO 5599-2 norm featuring electrical actuation, a soft sealing principle, and a mechanical spring reset method. It operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar) with a switchover pressure presetting of 0.4 MPa, utilizing internal pilot air supply and supporting a non-reversible flow direction with a pressurization valve function. This component incorporates both detenting and electrical self-resetting manual overrides, N.O. contact switching element function, and switching position sensing with a sensor, while withstanding severity level 2 vibration and shock resistance as per FN 942017-4, FN 942017-5, EN 60068-2-6, and EN 60068-2-27 standards. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557377
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557377.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. positive test pulse with 0 signal
- 2500 µs
- Max. negative test pulse on 1 signal
- 1400 µs
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Based on norm
- ISO 5599-2
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Self-resetting via electrical control signal
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve function
- Pressurization function
- Switching element function
- N.O. contact
- Note on forced dynamization
- Switching frequency at least once a month
- Switching position sensing
- Switching position with sensor
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Switchover pressure presetting
- 0.4 MPa
- Standard nominal ow rate pressurization
- 3000 l/min
- Standard nominal ow rate exhaust air
- 3300 l/min
- Nominal operating voltage DC
- 24 V
- Coil characteristics
- 24 V DC: 2.5 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
