Festo
557608

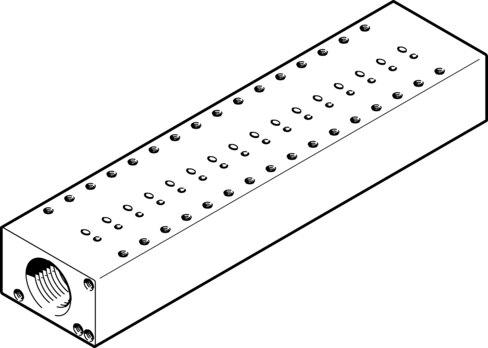

Manifold rail MHJ10-P16
The Festo 557608 is an industrial component featuring an 11 mm width, a product weight of 635 g, and a manifold rail constructed from anodized wrought aluminum alloy with a CRC of 2 for moderate corrosion stress. It accommodates up to 16 valve positions, includes reverse polarity protection for the operating voltage, and provides RCM compliance, VDMA24364-B2-L LABS conformity, and RoHS material compliance. This assembly mounts with a retaining bracket and integrates a G1/2 pneumatic connection 1 alongside an M7 pneumatic connection 2, with custom configurations available. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557608
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557608.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 11 mm
- Reverse polarity protection
- For operating voltage
- Max. no. of valve positions
- 16 | Versions according to customer specications possible
- Certication
- RCM compliance mark
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product weight
- 635 g
- Type of mounting
- With retaining bracket
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- M7
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 557608. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
