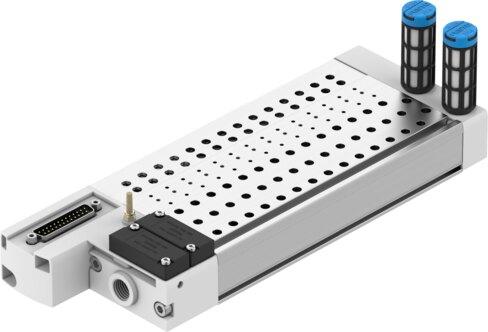

Reference imageConfirm configuration by manufacturer part number.
Festo
557663
Manifold rail VABM-C8-12E-G14-14-M1
The Festo part number 557663 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 12 mm and a product weight of 992 g. This unit accommodates a maximum of 14 valve positions and includes G1/4 pneumatic connections for ports 1, 3, and 5, while adhering to RoHS material requirements with VDMA24364-B1/B2-L LABS conformity and a CRC rating of 0 for no corrosion stress. Installation requires a maximum tightening torque of 0.6 Nm for valve mounting and 5 Nm for wall mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557663
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557663.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 12 mm
- Max. no. of valve positions
- 14
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for valve mounting
- 0.6 Nm
- Max. tightening torque for wall mounting
- 5 Nm
- Product weight
- 992 g
- Pneumatic connection 1
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 5
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 557663. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
