Festo
557684

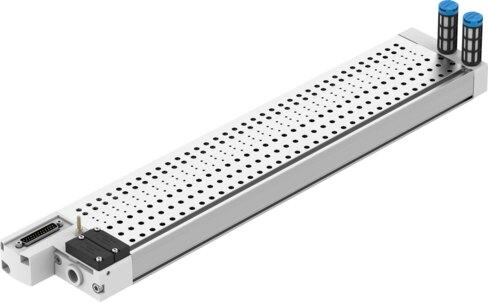

Manifold rail VABM-C8-12E-G14-35-M1
The Festo 557684 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 12 mm and a product weight of 2060 g. This assembly accommodates a maximum of 35 valve positions and includes G1/4 pneumatic connections for ports 1, 3, and 5. It exhibits corrosion resistance class 0, VDMA24364-B1/B2-L LABS conformity, and RoHS compliant materials, with a maximum tightening torque of 0.6 Nm for valve mounting and 5 Nm for wall mounting. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557684
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557684.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 12 mm
- Max. no. of valve positions
- 35
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for valve mounting
- 0.6 Nm
- Max. tightening torque for wall mounting
- 5 Nm
- Product weight
- 2060 g
- Pneumatic connection 1
- G1/4
- Pneumatic connection 3
- G1/4
- Pneumatic connection 5
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 557684. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
