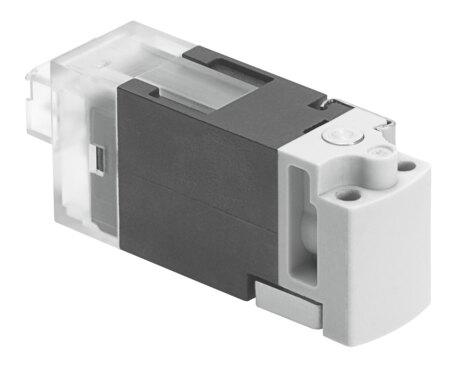

Reference imageConfirm configuration by manufacturer part number.
Festo
557864
Air solenoid valve MHA1-M1LCH-2/2G-1.5-HC
Festo Air solenoid valve MHA1-M1LCH-2/2G-1.5-HC, part number 557864, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 557864
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557864.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Valve function
- 2/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 30 l/min
- Pneumatic working port
- Sub-base
- Operating voltage
- 24V DC
- Operating pressure
- 0 bar...1.5 bar
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP40
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Nominal width
- 1.5 mm
- Width dimension
- 10 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Signal status display
- LED
- Operating pressure, reversible
- -0.95 bar...0 bar
- Suitability for vacuum
- Yes
- Standard ow rate (standardized according to DIN 1343)
- 30 l/min
- Max. switching frequency
- 10 Hz
- Switching time off
- 6 ms
- On switching time
- 6 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: low-current phase 0.7 W, high-current phase 3.0 W
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 557864. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
