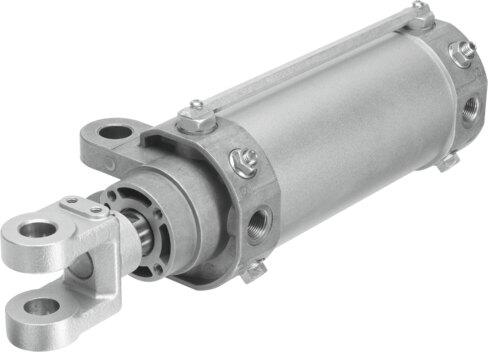

Name: Festo 557930 Hinge cylinder DW-80- -Y-A
Brand: Festo

Hinge cylinder DW-80- -Y-A

The Festo part number 557930 is a double-acting industrial component featuring an 80 mm piston diameter, an M20x1.5 piston rod thread with a rod clevis, and an adjustable stroke length ranging from 10 mm to 200 mm. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 1 bar to 10 bar pressure range, this unit incorporates adjustable pneumatic cushioning at both ends, integrated flow control, and position sensing via proximity switch. It delivers a theoretical retracting force of 2721 N at 6 bar and includes a swivel mounting on the bearing cap for installation in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 557930
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 557930.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm...200 mm
Piston diameter: 80 mm
Piston rod thread: M20x1.5
Wide rod clevis/swivel mounting: 28 mm
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Structural design: Piston | Piston rod with rod clevis | Swivel mounting on bearing cap | Cylinder barrel
Velocity control: Integrated ow control at both ends
Position sensing: Via proximity switch
Piston rod end: External thread with rod clevis
Operating pressure: 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 1.8 J
Cushioning length: 30 mm
Theoretical force at 6 bar, retracting: 2721 N
Theoretical force at 6 bar, advancing: 3016 N
Moving mass at 0 mm stroke: 1651 g
Additional moving mass per 10 mm stroke: 39 g
Basic weight with 0 mm stroke: 4185 g
Additional weight per 10 mm stroke: 65 g
Alternative connections: See product drawing
Type of mounting: With swivel mounting on bearing cap | With accessories
Pneumatic connection: Rc3/8
Rod clevis material: Cast steel
