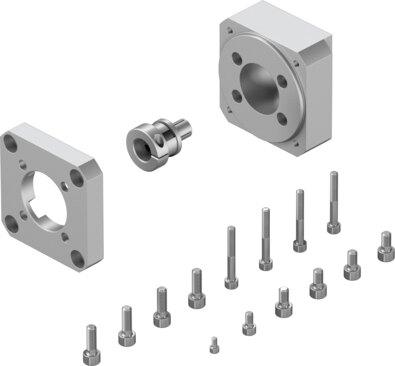

Reference imageConfirm configuration by manufacturer part number.
Festo
557974
Axial kit EAMM-A-L27-40G
The Festo part number 557974 is an industrial component featuring a nominal length of 28.7 mm, a transferable torque of 2 Nm, and a maximum rotational speed of 10000 rpm. Weighing 180 g with a mass moment of inertia of 0.445 kgmm², this unit includes actuator interface code L27, motor input interface code 40G, and VDMA24364-B2-L LABS conformity. It offers IP40 protection, operates within an ambient temperature range of -10 °C to 60 °C, and incorporates RoHS-compliant materials with any mounting position supported. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557974
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557974.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 28.7 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.445 kgmm²
- Transferable torque
- 2 Nm
- Product weight
- 180 g
- Interface code, actuator
- L27
- Interface code, motor in
- 40G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 557974. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
