Festo
557999

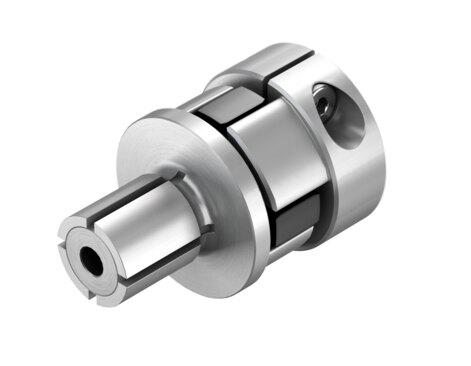

Coupling EAMD-19-15-9-8X10
The Festo size 19 industrial component features a nominal length of 15 mm with a 9 mm diameter for holder 1 and an 8 mm diameter for holder 2. This RoHS compliant part delivers a transferable torque of 2 Nm at a maximum rotational speed of 10,000 rpm while maintaining a mass moment of inertia of 0.445 kgmm² and a total product weight of 13.5 g. Operating effectively within ambient and storage temperatures from -25 °C to 60 °C and relative air humidity levels of 0 to 95%, it supports any mounting position and meets VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 557999
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 557999.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 9 mm
- Diameter of holder 2
- 8 mm
- Size
- 19
- Nominal length
- 15 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 0.445 kgmm²
- Transferable torque
- 2 Nm
- Product weight
- 13.5 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 557999. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
