Festo
558000

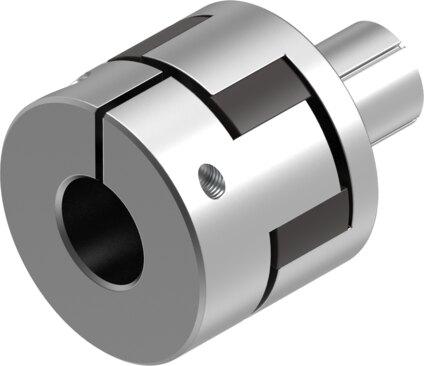

Coupling EAMD-25-22-11-10X12
The Festo size 25 industrial component, part number 558000, features an 11 mm diameter for holder 1 and a 10 mm diameter for holder 2 with a nominal length of 22 mm. This RoHS-compliant unit weighs 43.5 g, exhibits a mass moment of inertia of 3.2 kgmm², and delivers a transferable torque of 9 Nm at rotational speeds up to 8000 rpm. It operates within ambient and storage temperatures of -25 °C to 60 °C, supports 0 to 95% relative air humidity, complies with VDMA24364-B2-L LABS conformity, and permits mounting in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558000
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558000.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 11 mm
- Diameter of holder 2
- 10 mm
- Size
- 25
- Nominal length
- 22 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 9 Nm
- Product weight
- 43.5 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558000. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
