Festo
558007

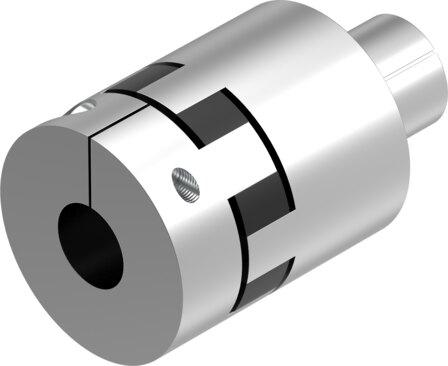

Coupling EAMD-67-82-25-32X32-U
The Festo 558007 industrial component features a holder 1 diameter of 25 mm, a holder 2 diameter of 32 mm, size 67, and a nominal length of 82 mm, with a product weight of 1557 g and RoHS compliant materials. It operates at a maximum rotational speed of 4500 rpm, a transferable torque of 150 Nm, a mass moment of inertia of 831 kgmm², and VDMA24364-B2-L LABS conformity in any mounting position. The unit functions within ambient and storage temperatures from -25 °C to 60 °C and relative air humidity levels of 0 to 95%. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558007
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558007.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 25 mm
- Diameter of holder 2
- 32 mm
- Size
- 67
- Nominal length
- 82 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 831 kgmm²
- Transferable torque
- 150 Nm
- Product weight
- 1557 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558007. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
