Festo
558008

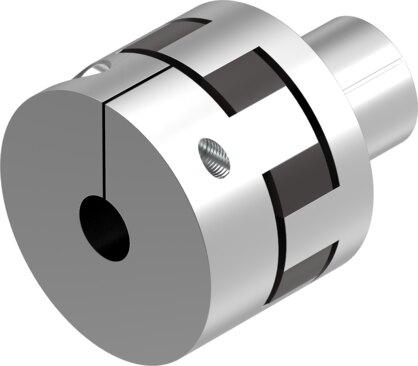

Coupling EAMD-67-51-24-32X32-U
The Festo industrial component, part number 558008, features a size 67 designation with a nominal length of 51 mm and a mass moment of inertia of 374 kgmm². This unit accommodates a holder diameter of 24 mm on one end and 32 mm on the other, supporting a transferable torque of 143 Nm and a maximum rotational speed of 4500 rpm with any mounting position. Constructed in compliance with RoHS material notes and VDMA24364-B2-L LABS conformity, it operates and stores within a temperature range of -25 °C to 60 °C and 0 to 95% relative air humidity while weighing 736 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558008
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558008.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 24 mm
- Diameter of holder 2
- 32 mm
- Size
- 67
- Nominal length
- 51 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 374 kgmm²
- Transferable torque
- 143 Nm
- Product weight
- 736 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558008. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
