Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

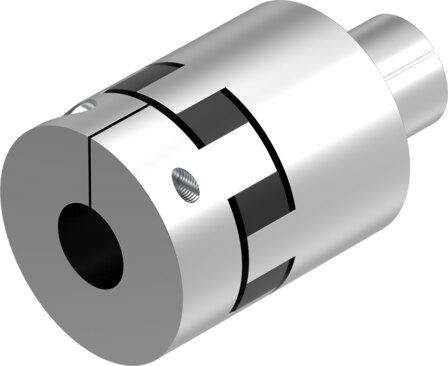

Reference imageConfirm configuration by manufacturer part number.
Festo
558009
Coupling EAMD-67-82-24-32X32-U
The Festo part number 558009 is an industrial component featuring a size 67 designation with a nominal length of 82 mm and a product weight of 1559 g. It accommodates a holder 1 diameter of 24 mm alongside a holder 2 diameter of 32 mm, delivering a transferable torque of 143 Nm at a maximum rotational speed of 4500 rpm with a mass moment of inertia of 831 kgmm². Built with RoHS compliant materials and VDMA24364-B2-L LABS conformity, this unit operates in ambient and storage temperatures ranging from -25 °C to 60 °C and relative air humidity between 0 and 95% in any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558009
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558009.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 24 mm
- Diameter of holder 2
- 32 mm
- Size
- 67
- Nominal length
- 82 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 831 kgmm²
- Transferable torque
- 143 Nm
- Product weight
- 1559 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558009. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
