Festo
558034

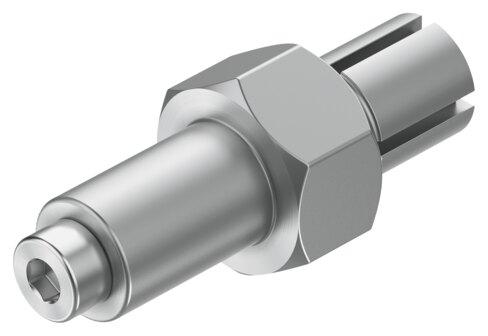

Drive shaft adapter EAMB-16-7-8X15-8X10
The Festo 558034 is an industrial component featuring an 8 mm diameter for both holder 1 and holder 2, a size 50 designation, and a nominal length of 15 mm. Engineered with a mass moment of inertia of 0.45 kgmm², this RoHS-compliant part weighs 20.2 g, supports a transferable torque of 4.5 Nm, and achieves a maximum rotational speed of 10000 rpm across any mounting position. It conforms to VDMA24364-B2-L LABS standards while operating and storing in ambient temperatures from -25 °C to 60 °C and relative air humidity levels of 0 to 95%. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558034
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558034.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 8 mm
- Diameter of holder 2
- 8 mm
- Size
- 50
- Nominal length
- 15 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 0.45 kgmm²
- Transferable torque
- 4.5 Nm
- Product weight
- 20.2 g
- Note on materials
- RoHS compliant
