Festo
558037

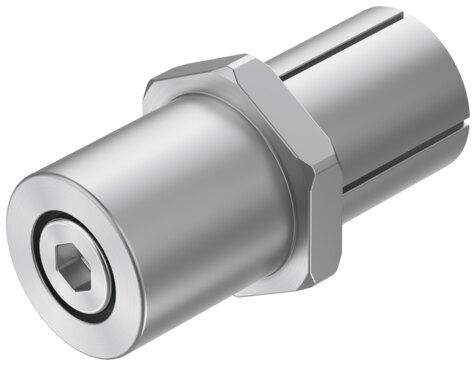

Drive shaft adapter EAMB-34-6-25X26-23X27
The Festo industrial component, part number 558037, features a size 120 designation with a nominal length of 26 mm and dual holder diameters of 25 mm and 23 mm. It accommodates any mounting position while operating up to a maximum rotational speed of 5500 rpm with a mass moment of inertia of 18.2 kgmm² and a transferable torque of 100 Nm. Weighing 201 g, the RoHS-compliant assembly conforms to VDMA24364-B2-L LABS standards and functions within storage and ambient temperatures of -25 °C to 60 °C alongside 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558037
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558037.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 25 mm
- Diameter of holder 2
- 23 mm
- Size
- 120
- Nominal length
- 26 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 18.2 kgmm²
- Transferable torque
- 100 Nm
- Product weight
- 201 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558037. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
