Festo
558038

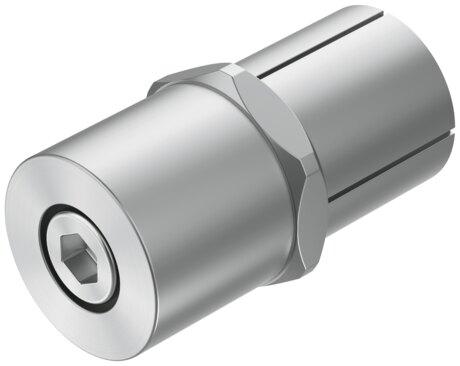

Drive shaft adapter EAMB-44-7-35X30-32X32
The Festo 558038 industrial component features a size 185 design with a nominal length of 30 mm, a 35 mm diameter for holder 1, and a 32 mm diameter for holder 2. This RoHS-compliant unit weighs 463 g, exhibits a mass moment of inertia of 75.3 kgmm², and supports a transferable torque of 200 Nm at a maximum rotational speed of 4500 rpm in any mounting position. Operating within ambient and storage temperatures from -25 °C to 60 °C and relative air humidity levels of 0 to 95%, it complies with VDMA24364-B2-L LABS (PWIS) standards. Submit your exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558038
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558038.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 35 mm
- Diameter of holder 2
- 32 mm
- Size
- 185
- Nominal length
- 30 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 75.3 kgmm²
- Transferable torque
- 200 Nm
- Product weight
- 463 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558038. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
