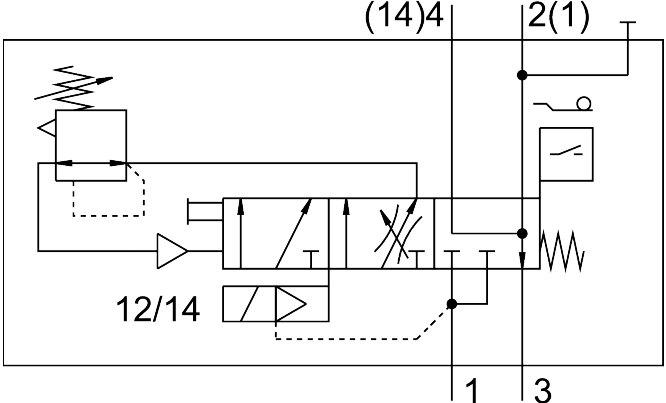

Reference imageConfirm configuration by manufacturer part number.
Festo
558234
Soft-start valve VABF-S6-1-P5A4-N12-4-1-N
The Festo 558234 is a piloted piston gate valve based on the ISO 5599-2 norm, featuring electrical actuation with a soft sealing principle and internal pilot air supply. This component operates within a pressure range of 0.2 MPa to 1.2 MPa (2 bar to 12 bar) utilizing a pressurization valve function with a normally open contact, negative overlap, and mechanical spring reset. It incorporates both detenting and self-resetting manual overrides via electrical control signal, along with switching position sensing via sensor, supporting a max positive test pulse with 0 signal of 2500 µs and a max negative test pulse on 1 signal of 1400 µs. Built for any mounting position with vibration resistance to severity level 2 per FN 942017-4 and EN 60068-2-6 and shock resistance to severity level 2 per FN 942017-5 and EN 60068-2-27, it requires a forced dynamization switching frequency of at least once a month. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558234
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558234.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. positive test pulse with 0 signal
- 2500 µs
- Max. negative test pulse on 1 signal
- 1400 µs
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Based on norm
- ISO 5599-2
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Self-resetting via electrical control signal
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve function
- Pressurization function
- Switching element function
- N.O. contact
- Lap
- Negative overlap
- Note on forced dynamization
- Switching frequency at least once a month
- Switching position sensing
- Switching position with sensor
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Switchover pressure presetting
- 0.4 MPa
- Standard nominal ow rate pressurization
- 3000 l/min
- Standard nominal ow rate exhaust air
- 3300 l/min
- Nominal operating voltage DC
- 24 V
- Coil characteristics
- 24 V DC: 2.5 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
