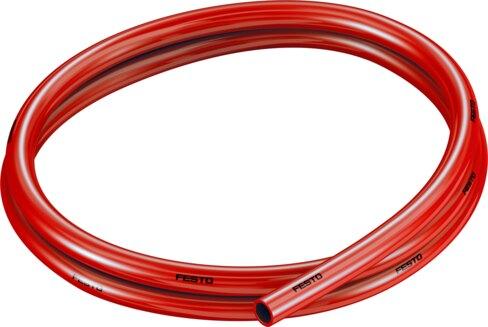

Name: Festo 558288 Plastic tubing PUN-H-10X1,5-RT
Brand: Festo

Plastic tubing PUN-H-10X1,5-RT

The Festo 558288 industrial component is a 10 mm outside diameter and 7 mm inside diameter TPE-U ether-based tubing designed for energy chains, featuring a minimum bending radius of 28 mm and a bending radius relevant for flow rate of 52 mm. Constructed with UL94 HB material fire testing and VDMA24364-B2-L LABS conformity, it supports an operating pressure of -0.095 MPa to 0.6 MPa across its entire temperature range of -35 °C to 60 °C and handles compressed air or liquid water. Certified by TÜV under certificate B 013277 0527 00, this pneumatic connection component weighs 0.0465 kg/m and is suitable for battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 558288
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 558288.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 10 mm
Bending radius relevant for ow rate: 52 mm
Inside diameter: 7 mm
Min. bending radius: 28 mm
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.0465 kg/m
Pneumatic connection: For plug connection outside diameter 10 mm
Color: Red
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
