558290

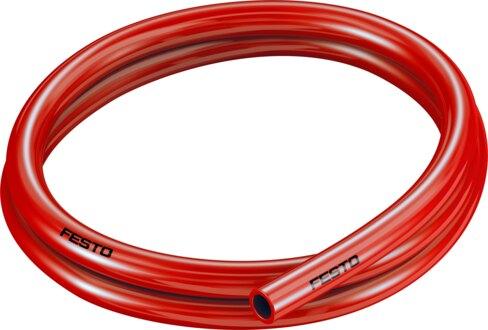

Name: Festo 558290 Plastic tubing PUN-H-16X2,5-RT
Brand: Festo

Plastic tubing PUN-H-16X2,5-RT

The Festo part number 558290 is a TPE-U ether-based industrial component featuring a 16 mm outside diameter, an 11 mm inside diameter, and an 88 mm bending radius relevant for flow rate alongside a 38 mm minimum bending radius. Constructed for energy chains, this tubing operates across a temperature range of -35 °C to 60 °C with a product weight of 0.123 kg/m and accepts a pneumatic connection for plug connection outside diameter 16 mm. It functions with compressed air as per ISO 8573-1:2010 [7:-:-] and water, holding a TÜV certification (certificate B 013277 0527 00), UL94 HB material fire test rating, VDMA24364-B2-L LABS conformity, and suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 558290
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 558290.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 16 mm
Bending radius relevant for ow rate: 88 mm
Inside diameter: 11 mm
Min. bending radius: 38 mm
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.123 kg/m
Pneumatic connection: For plug connection outside diameter 16 mm
Color: Red
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 558290. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
