Festo
558297

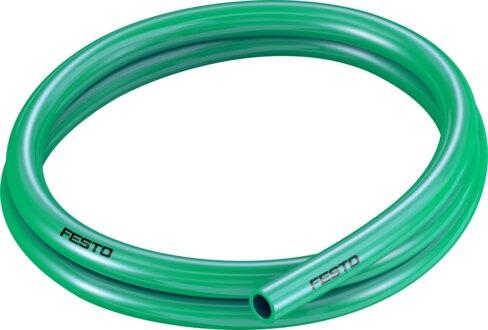

Plastic tubing PUN-H-16X2,5-GN
The Festo industrial component, part number 558297, is an ether-based TPE-U tubing with a 16 mm outside diameter, an 11 mm inside diameter, an 88 mm bending radius relevant for flow rate, and a 38 mm minimum bending radius. Constructed for compressed air and liquid water service, this TÜV-certified tubing features a weight of 0.123 kg/m, UL94 HB material fire testing, VDMA24364-B2-L LABS conformity, and suitability for Li-ion battery production with reduced Cu/Zn/Ni values. It supports operating pressures ranging from -0.095 MPa to 0.6 MPa across its entire temperature range of -35 °C to 60 °C, handles temperature-dependent operating pressures up to 1 MPa, and is suitable for energy chains with a pneumatic connection for a 16 mm outside diameter plug connection. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558297
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558297.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 16 mm
- Bending radius relevant for ow rate
- 88 mm
- Inside diameter
- 11 mm
- Min. bending radius
- 38 mm
- Application note
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
- Certication
- TÜV
- Certicate issuing authority
- B 013277 0527 00
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.123 kg/m
- Pneumatic connection
- For plug connection outside diameter 16 mm
- Color
- Green
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
