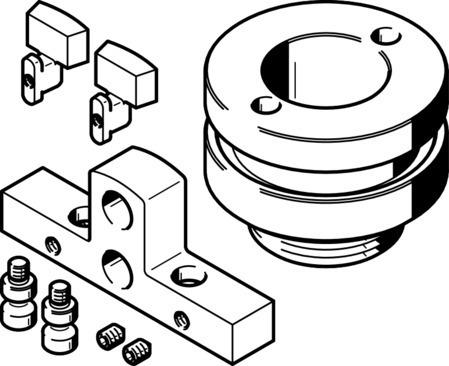

Reference imageConfirm configuration by manufacturer part number.
Festo
558397
Sensing kit EAPS-R1-32-S-WH
The Festo 558397 is an industrial component featuring a size 32 format and an adjustable rotation angle with an overall product weight of 136 g. Constructed with an anodized wrought aluminum alloy retaining and sensor holder material, this unit operates within an ambient temperature range of -10 °C to 60 °C in any mounting position. It complies with RoHS materials standards, VDMA24364-B2-L LABS conformity, and features a CRC 2 moderate corrosion stress resistance class. Request a formal quote by submitting the exact part number, required quantity, and application parameters.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558397
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558397.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Rotation angle
- Adjustable
- Mounting position
- Any
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 136 g
- Note on materials
- RoHS compliant
- Retaining material
- Wrought aluminum alloy | Anodized
- Sensor holder material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558397. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
