Festo
558658

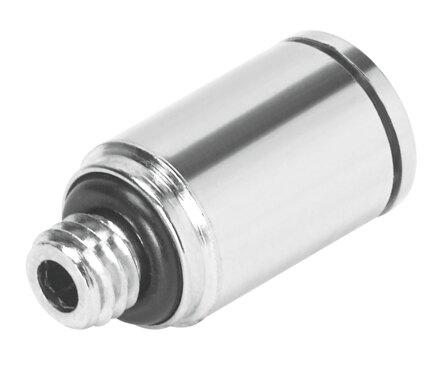

Push-in fitting NPQM-DK-M5-Q6-P10
The Festo 558658 is a standard straight industrial component featuring a 2.5 mm nominal width and a push-pull structural design with an M5 external thread and a connection for 6 mm outside diameter pneumatic tubing. This part operates across a pressure range of -0.095 MPa to 1.6 MPa using compressed air according to ISO 8573-1:2010 [7:-:-] and allows lubricated operation within an ambient temperature range of -20 °C to 70 °C. Each pack contains 10 RoHS-compliant units weighing 8.6 g each, equipped with a sealing ring on the screwed plug and an internal hex AF2.5 for a nominal tightening torque of 1 Nm with a ±20% tolerance. Submit part number 558658, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558658
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558658.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.5 mm
- Type of seal on screwed plug
- Sealing ring
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Nominal tightening torque
- 1 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 8.6 g
- Type of mounting
- Internal hex AF2.5
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of tubing seal
- NBR
