Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

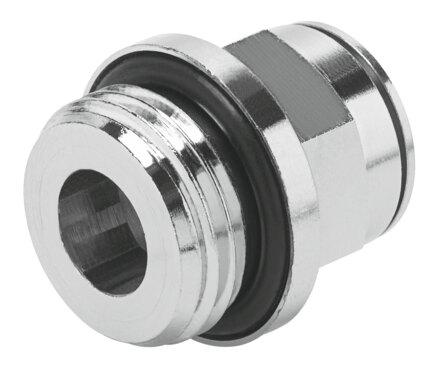

Reference imageConfirm configuration by manufacturer part number.
Festo
558671
Push-in fitting NPQM-D-G12-Q10-P10
The Festo 558671 is a straight industrial component featuring a nominal width of 8 mm, an external thread G1/2 pneumatic connection 1, and a pneumatic connection 2 for 10 mm outside diameter tubing utilizing a push-pull structural design. This pack size of 10 operates within a pressure range of -0.095 MPa to 1.6 MPa using compressed air per ISO 8573-1:2010 [7:-:-] and accommodates an ambient temperature range of -20 °C to 70 °C. It incorporates a sealing ring on the screwed plug, an external hexagon SW16 and internal hexagon AF 8 mounting type, a silver releasing ring, and a nominal tightening torque of 9 Nm with a ±20% tolerance. Submit the exact part number, quantity, and application requirements to request a quote for this RoHS-compliant component weighing 34.5 g.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558671
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558671.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 8 mm
- Type of seal on screwed plug
- Sealing ring
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Nominal tightening torque
- 9 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 34.5 g
- Type of mounting
- External hexagon SW16 | Internal hexagon, AF 8
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 10 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of tubing seal
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558671. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
