Festo
558674

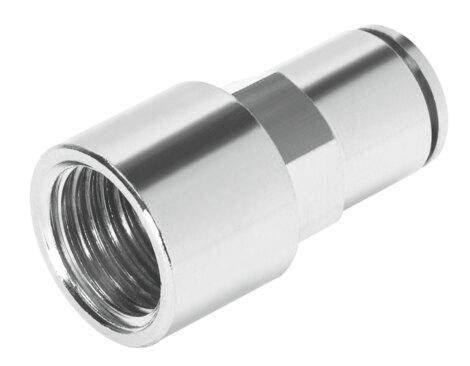

Push-in fitting NPQM-D-G18F-Q4-P10
The Festo part number 558674 is a standard industrial component featuring a straight design with a 3 mm nominal width and the push-pull structural principle. Constructed with a nickel-plated brass housing, an NBR tubing seal, and an external hexagon AF 9 mounting type, this unit includes an internal thread G1/8 pneumatic connection 1 and accommodates a 4 mm outside diameter pneumatic tubing connection 2 with a silver releasing ring. It operates within a pressure range of -0.095 MPa to 1.6 MPa, temperatures from -20 °C to 70 °C, and supports compressed air per ISO 8573-1:2010 [7:-:-] with lubricated operation possible. Submit the exact part number, quantity, and application requirements for a quote on this pack size of 10 components weighing 10 g each.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558674
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558674.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 3 mm
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Product weight
- 10 g
- Type of mounting
- External hexagon, AF 9
- Pneumatic connection 1
- Internal thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of tubing seal
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558674. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
