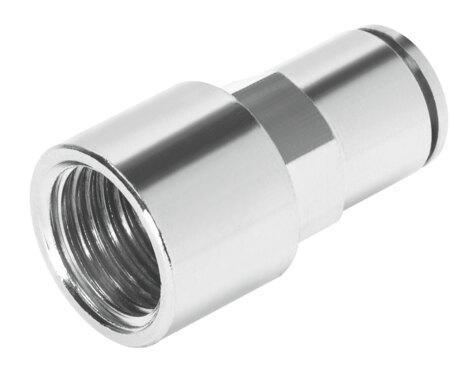

Reference imageConfirm configuration by manufacturer part number.
Festo
558678
Push-in fitting NPQM-D-G14F-Q6-P10
The Festo 558678 is a standard straight industrial component featuring a G1/4 internal thread for pneumatic connection 1 and a 6 mm outside diameter tubing connection for pneumatic connection 2, utilizing a push-pull structural design with a silver releasing ring. Constructed with a nickel-plated brass housing, NBR tubing seal, and an external hexagon SW12 mounting type, this part operates within a pressure range of -0.095 MPa to 1.6 MPa and an ambient temperature range of -20 °C to 70 °C using compressed air per ISO 8573-1:2010 [7:-:-]. Each pack contains 10 RoHS-compliant units weighing 18.5 g each, rated with a corrosion resistance class of 1 and VDMA24364-B1/B2-L LABS conformity for lubricated or unlubricated compressed air systems. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558678
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558678.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5 mm
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Product weight
- 18.5 g
- Type of mounting
- External hexagon SW12
- Pneumatic connection 1
- Internal thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of tubing seal
- NBR
