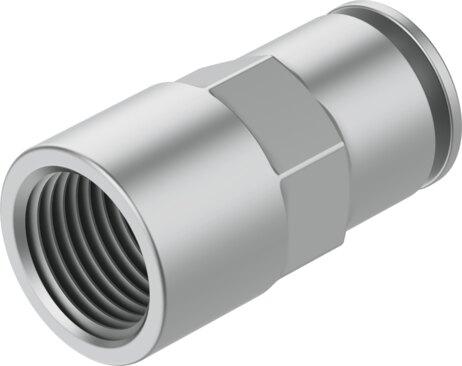

Reference imageConfirm configuration by manufacturer part number.
Festo
558679
Push-in fitting NPQM-D-G14F-Q8-P10
The Festo part number 558679 is a standard straight industrial component featuring a nominal width of 7 mm, a G1/4 internal thread for pneumatic connection 1, and an 8 mm outside diameter connection for pneumatic tubing 2. Built with a nickel-plated brass housing, NBR tubing seal, and an external hexagon SW14 mounting type, this component operates across a pressure range of -0.095 MPa to 1.6 MPa with compressed air conforming to ISO 8573-1:2010 [7:-:-] and supports lubricated operation. Featuring a silver releasing ring, a CRC rating of 1, VDMA24364-B1/B2-L LABS conformity, RoHS compliant materials, and a product weight of 20.2 g, it functions within an ambient temperature range of -20 °C to 70 °C and is supplied in a pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558679
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558679.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 7 mm
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Product weight
- 20.2 g
- Type of mounting
- External hexagon SW14
- Pneumatic connection 1
- Internal thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of tubing seal
- NBR
