Festo
558739

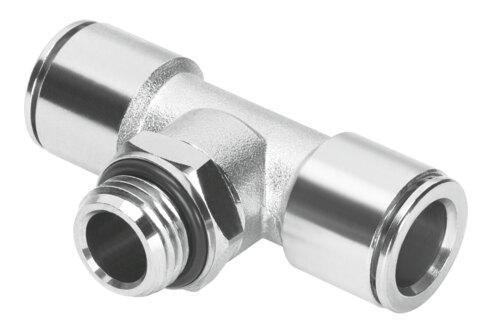

Push-in T-fitting NPQM-T-G14-Q6-P10
The Festo 558739 is a T-shaped industrial component featuring a standard size, a nominal width of 5 mm, and a G1/4 external thread for pneumatic connection 1 alongside a 6 mm outside diameter connection for pneumatic tubing at connection 2. Packaged in quantities of 10 with a product weight of 29.1 g each, this component utilizes the push-pull structural design, an external hexagon SW13 mounting type, and a sealing ring type of seal on the screwed plug with a nominal tightening torque of 7.5 Nm at a ±20% tolerance. It operates within a temperature range of -20 °C to 70 °C and an operating pressure span of -0.095 MPa to 1.6 MPa using compressed air according to ISO 8573-1:2010 [7:-:-], while allowing lubricated operation and maintaining a CRC 1 corrosion resistance class with VDMA24364-B1/B2-L LABS conformity and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558739
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558739.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5 mm
- Type of seal on screwed plug
- Sealing ring
- Design
- T-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Nominal tightening torque
- 7.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 29.1 g
- Type of mounting
- External hexagon SW13
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of tubing seal
- NBR
