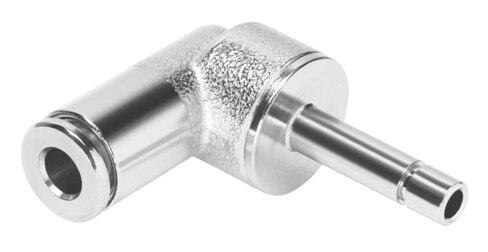

Reference imageConfirm configuration by manufacturer part number.
Festo
558781
Push-in L-connector NPQM-L-Q4-S4-P10
The Festo 558781 is a standard-sized, L-shaped industrial component featuring a 2.5 mm nominal width and a push-pull structural design packaged in a quantity of 10. Constructed with a nickel-plated brass housing, an NBR tubing seal, and a silver releasing ring, this RoHS-compliant part supports compressed air operation according to ISO 8573-1:2010 [7:-:-] across an operating pressure range of -0.95 bar to 16 bar and ambient temperatures from -20 °C to 70 °C. It accommodates a 4 mm push-in sleeve at pneumatic connection 1 and a 4 mm outside diameter pneumatic tubing at connection 2, providing a product weight of 14 g, CRC 1 low corrosion stress resistance, and VDMA24364-B1/B2-L LABS conformity with lubricated operation possible. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558781
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558781.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 2.5 mm
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Product weight
- 14 g
- Pneumatic connection 1
- Push-in sleeve Ø 4 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of tubing seal
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558781. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
