Festo
558793

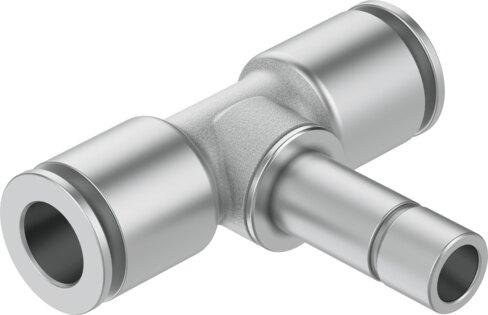

Push-in T-connector NPQM-T-Q8-S8-P10
The Festo 558793 is a standard T-shaped industrial component featuring a 5.5 mm nominal width and a push-pull structural design with a silver releasing ring. Supplied in a pack size of 10, this unit utilizes nickel-plated brass housing, an NBR tubing seal, an 8 mm push-in sleeve for pneumatic connection 1, and an 8 mm outside diameter pneumatic tubing connection for pneumatic connection 2. It operates across an ambient temperature range of -20 °C to 70 °C and supports an operating pressure of -0.095 MPa to 1.6 MPa (-0.95 bar to 16 bar or -13.775 psi to 232 psi) using compressed air conforming to ISO 8573-1:2010 [7:-:-] with optional lubricated operation. Each 29 g RoHS-compliant part exhibits a corrosion resistance class of 1 for low corrosion stress, VDMA24364-B1/B2-L LABS conformity, and includes materials that are fully specified. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558793
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558793.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5.5 mm
- Design
- T-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Product weight
- 29 g
- Pneumatic connection 1
- Push-in sleeve Ø 8 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Material of tubing seal
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558793. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
