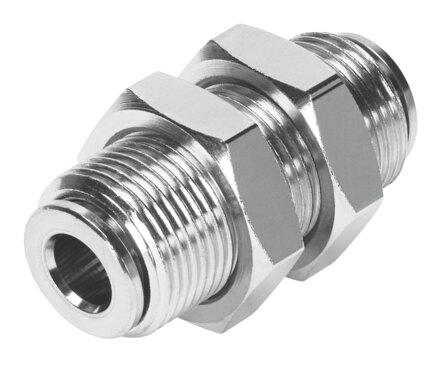

Reference imageConfirm configuration by manufacturer part number.
Festo
558807
Push-in bulkhead connector NPQM-H-Q6-E-P10
The Festo 558807 is a standard bulkhead industrial component featuring a nominal width of 5 mm and a push-pull structural design for 6 mm outside diameter pneumatic tubing on both connections. Constructed with a nickel-plated brass housing and nut alongside an NBR tubing seal, this part supports compressed air operating media within a temperature range of -20 °C to 70 °C and an operating pressure span from -0.095 MPa to 1.6 MPa. Supplied in a pack size of 10 with a silver releasing ring and a product weight of 33 g, the RoHS-compliant assembly exhibits CRC 1 low corrosion stress and VDMA24364-B1/B2-L LABS conformity while permitting lubricated operation. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558807
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558807.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5 mm
- Design
- Bulkhead
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Product weight
- 33 g
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Nut material
- Brass, nickel-plated
- Material of tubing seal
- NBR
