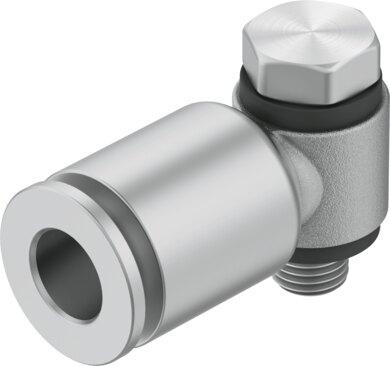

Reference imageConfirm configuration by manufacturer part number.
Festo
558827
Push-in L-fitting NPQM-LH-M5-Q4-P10
This Festo part number 558827 is a standard L-shaped industrial component featuring an M5 external thread for pneumatic connection 1 and a connection for 4 mm outside diameter pneumatic tubing at connection 2. Utilizing a push-pull structural design with a sealing ring on the screwed plug and a silver releasing ring, the unit operates across a pressure range of -0.095 MPa to 1.6 MPa with compressed air conforming to ISO 8573-1:2010 [7:-:-]. Each pack size contains 10 units, weighing 10.3 g each, designed for mounting via a hollow bolt with an external hex at a nominal tightening torque of 1 Nm within a ±20% tolerance. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558827
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558827.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 3 mm
- Type of seal on screwed plug
- Sealing ring
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Nominal tightening torque
- 1 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 10.3 g
- Type of mounting
- Hollow bolt with external hex
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Hollow bolt material
- Brass, nickel-plated
- Material of tubing seal
- NBR
