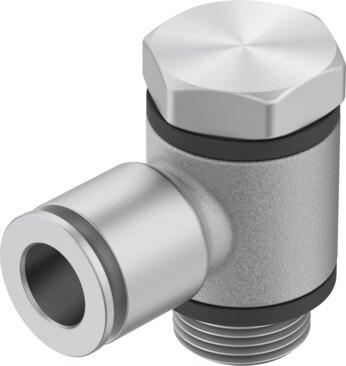

Reference imageConfirm configuration by manufacturer part number.
Festo
558833
Push-in L-fitting NPQM-LH-G14-Q8-P10
The Festo 558833 is an L-shaped industrial component featuring a 6.5 mm nominal width, a G1/4 external thread, and a connection for an 8 mm outside diameter pneumatic tubing utilizing the push-pull principle. Operating across a pressure range of -0.095 MPa to 1.6 MPa with compressed air compliant with ISO 8573-1:2010 [7:-:-], this standard-sized part incorporates a sealing ring on the screwed plug and a hollow bolt with an external hex requiring a 7.5 Nm nominal tightening torque with a ±20% tolerance. Supplied in a pack size of 10 with a product weight of 49.3 g each, the unit features a silver releasing ring, a CRC rating of 1, and VDMA24364-B1/B2-L LABS conformity while supporting ambient temperatures from -20 °C to 70 °C and lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558833
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558833.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 6.5 mm
- Type of seal on screwed plug
- Sealing ring
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Nominal tightening torque
- 7.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 49.3 g
- Type of mounting
- Hollow bolt with external hex
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Hollow bolt material
- Brass, nickel-plated
- Material of tubing seal
- NBR
