Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
558836

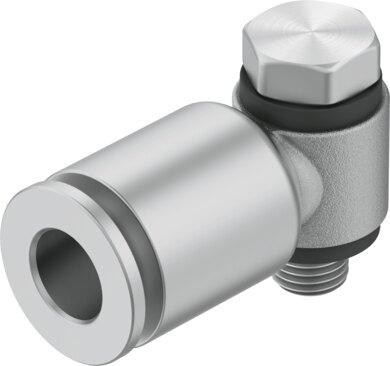

Push-in L-fitting NPQM-LH-G38-Q12-P10
This Festo industrial component, part number 558836, is an L-shaped standard-size part featuring a 10.5 mm nominal width and a push-pull structural design with a sealing ring on the screwed plug. Operating across a pressure range of -0.095 MPa to 1.6 MPa (-0.95 bar to 16 bar or -13.775 psi to 232 psi) and ambient temperatures from -20 °C to 70 °C, it accommodates compressed air per ISO 8573-1:2010 [7:-:-] with lubricated operation possible. The unit includes a G3/8 external thread for pneumatic connection 1, an outside diameter connection of 12 mm for pneumatic connection 2, an external hex hollow bolt mounting, a silver releasing ring, and a nominal tightening torque of 9 Nm with a ±20% tolerance, weighing 82.7 g with CRC 1 corrosion resistance. Submit the exact part number, quantity, and application requirements to request a quote for this pack size of 10 RoHS-compliant components.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558836
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558836.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 10.5 mm
- Type of seal on screwed plug
- Sealing ring
- Design
- L-shape
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Nominal tightening torque
- 9 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 82.7 g
- Type of mounting
- Hollow bolt with external hex
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Hollow bolt material
- Brass, nickel-plated
- Material of tubing seal
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558836. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
