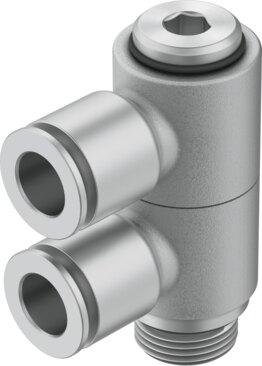

Reference imageConfirm configuration by manufacturer part number.
Festo
558841
Multiple distributor NPQM-LFK-G14-Q8-P10
The Festo part number 558841 is a standard L-shape dual F-outlet industrial component featuring a 6.5 mm nominal width and a push-pull structural design with a sealing ring on the screwed plug. This unit operates across a pressure range of -0.095 MPa to 1.6 MPa using compressed air conforming to ISO 8573-1:2010 [7:-:-] within an ambient temperature range of -20 °C to 70 °C, supporting lubricated operation and featuring an external thread G1/4 connection alongside a pneumatic tubing outside diameter connection of 8 mm. Supplied in a pack size of 10 with a product weight of 69.5 g each, it incorporates an internal hexagon AF 5 mounting type requiring a nominal tightening torque of 7.5 Nm with a ±20% tolerance, a corrosion resistance class of 1, and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558841
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558841.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 6.5 mm
- Type of seal on screwed plug
- Sealing ring
- Design
- L-shape, dual, F-outlet
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.775 psi...232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...70 °C
- Nominal tightening torque
- 7.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 69.5 g
- Type of mounting
- Internal hexagon, AF 5
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Hollow bolt material
- Brass, nickel-plated
- Material of tubing seal
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558841. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
