Festo
558864

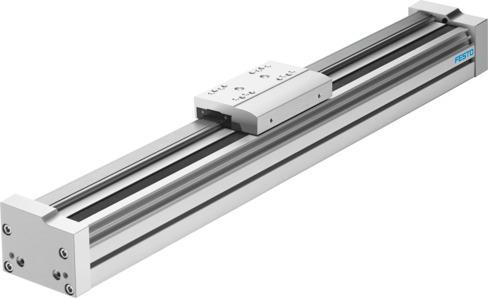

Guide axis EGC-70- -FA
The Festo 558864 is an industrial guide component featuring a size 70 design with a recirculating ball bearing guide and an adjustable working stroke between 50 mm and 5000 mm for any mounting position. It achieves a maximum acceleration of 50 m/s², a maximum speed of 5 m/s, an IP40 degree of protection, and an operating ambient temperature range from -10 °C to 60 °C. The unit withstands maximum forces of 1850 N for Fy, Fz, and Fy total axis, along with maximum torques of 16 Nm for Mx and up to 132 Nm for My and Mz. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558864
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558864.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...5000 mm
- Size
- 70
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 395000 mm⁴
- 2nd moment of area Iz
- 577000 mm⁴
- Max. force Fy
- 1850 N
- Max. force Fz
- 1850 N
- Max. no-load resistance to shifting
- 15 N
- Max. torque Mx
- 16 Nm
- Max. torque My
- 51 Nm...132 Nm
- Max. torque Mz
- 51 Nm...132 Nm
- Max. force Fy total axis
- 1850 N
- Max. force Fz total axis
- 1850 N
- Max. moment Mx total axis
- 16 Nm
- Max. moment My total axis
- 51 Nm...132 Nm
- Max. moment Mz total axis
- 51 Nm...132 Nm
- Torsion moment of inertia It
- 240000 mm⁴
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 6815 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 6815 N
- Mx with theoretical service life of 100 km (from a guide perspective
- 59 Nm
- My with theoretical service life of 100 km (from a guide perspective
- 188 Nm...486 Nm
