Festo
558865

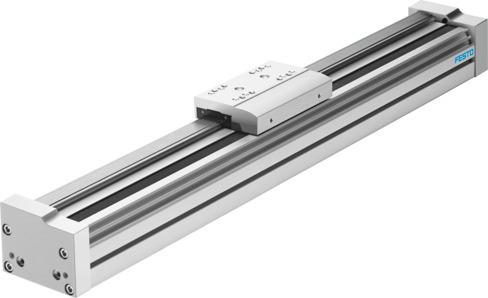

Guide axis EGC-80- -FA
The Festo 558865 is an industrial guide component featuring a size 80 structural design with a recirculating ball bearing guide and an adjustable working stroke between 50 mm and 8500 mm. This unit operates in any mounting position within an ambient temperature range of -10 °C to 60 °C, providing a maximum speed of 5 m/s, maximum acceleration of 50 m/s², and an IP40 degree of protection with CRC 0 corrosion resistance and VDMA24364 Zone III LABS conformity. It supports a maximum no-load resistance to shifting of 15 N, maximum forces Fy and Fz of 3050 N, a max force Fy total axis of 3050 N, 2nd moments of area Iy of 844000 mm⁴ and Iz of 1160000 mm⁴, along with maximum torques Mx of 36 Nm and My and Mz ranging from 97 Nm to 228 Nm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558865
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558865.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...8500 mm
- Size
- 80
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 844000 mm⁴
- 2nd moment of area Iz
- 1160000 mm⁴
- Max. force Fy
- 3050 N
- Max. force Fz
- 3050 N
- Max. no-load resistance to shifting
- 15 N
- Max. torque Mx
- 36 Nm
- Max. torque My
- 97 Nm...228 Nm
- Max. torque Mz
- 97 Nm...228 Nm
- Max. force Fy total axis
- 3050 N
- Max. force Fz total axis
- 3050 N
- Max. moment Mx total axis
- 36 Nm
- Max. moment My total axis
- 97 Nm...228 Nm
- Max. moment Mz total axis
- 97 Nm...228 Nm
- Torsion moment of inertia It
- 551000 mm⁴
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 11236 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 11236 N
- Mx with theoretical service life of 100 km (from a guide perspective
- 133 Nm
- My with theoretical service life of 100 km (from a guide perspective
- 357 Nm...840 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558865. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
