Festo
558868

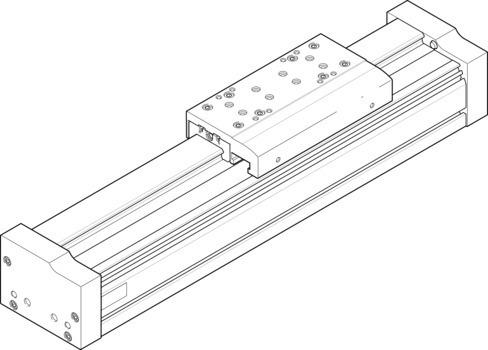

Guide axis EGC-185- -FA
The Festo Size 185 structural guide component features a recirculating ball bearing guide and supports a working stroke adjustable from 50 mm to 8500 mm in any mounting position. It accommodates a maximum acceleration of 50 m/s², a maximum speed of 5 m/s, and a maximum no-load resistance to shifting of 15 N, while providing maximum forces of 15200 N for Fy, Fz, and Fy total axis, along with maximum torques of 529 Nm for Mx and up to 1820 Nm for My and Mz. Built with a 2nd moment of area Iy of 23400000 mm⁴ and Iz of 27400000 mm⁴, the unit operates within an ambient temperature range of -10 °C to 60 °C, achieves an IP40 degree of protection, possesses a corrosion resistance class of CRC 0, and complies with VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 558868
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 558868.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm...8500 mm
- Size
- 185
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Max. acceleration
- 50 m/s²
- Max. speed
- 5 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- 2nd moment of area Iy
- 23400000 mm⁴
- 2nd moment of area Iz
- 27400000 mm⁴
- Max. force Fy
- 15200 N
- Max. force Fz
- 15200 N
- Max. no-load resistance to shifting
- 15 N
- Max. torque Mx
- 529 Nm
- Max. torque My
- 1157 Nm...1820 Nm
- Max. torque Mz
- 1157 Nm...1820 Nm
- Max. force Fy total axis
- 15200 N
- Max. force Fz total axis
- 15200 N
- Max. moment Mx total axis
- 529 Nm
- Max. moment My total axis
- 1157 Nm...1820 Nm
- Max. moment Mz total axis
- 1157 Nm...1820 Nm
- Torsion moment of inertia It
- 14100000 mm⁴
- Fy with theoretical service life of 100 km (from a guide perspective only)
- 55997 N
- Fz with theoretical service life of 100 km (from a guide perspective only)
- 55997 N
- Mx with theoretical service life of 100 km (from a guide perspective
- 1949 Nm
- My with theoretical service life of 100 km (from a guide perspective
- 4262 Nm...6705 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 558868. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
