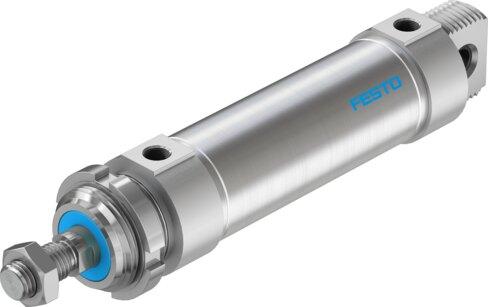

Reference imageConfirm configuration by manufacturer part number.
Festo
559319
Round cylinder DSNU-50-100-PPS-A
Engineered with a 50 mm piston diameter, a 100 mm stroke, and an M16x1.5 piston rod thread, this double-acting Festo industrial component operates between 1 bar and 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. The unit features self-adjusting pneumatic end-position cushioning with a 20 mm cushioning length, position sensing via proximity switch, and can function across an ambient temperature range of -20 °C to 80 °C. It delivers a theoretical force of 1178.1 N advancing and 989.6 N retracting at 6 bar, while possessing a moderate corrosion resistance class (CRC 2) and a product weight of 1487 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 559319
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 559319.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 100 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1 J
- Cushioning length
- 20 mm
- Theoretical force at 6 bar, retracting
- 989.6 N
- Theoretical force at 6 bar, advancing
- 1178.1 N
- Moving mass
- 663 g
- Product weight
- 1487 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR | TPE-U(PU)
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 559319. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
