Festo
559336

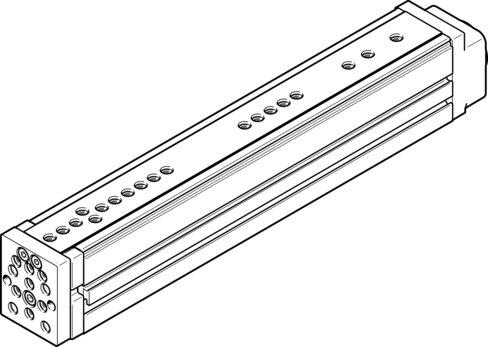

Mini slide EGSL-BS-45-200-10P
The Festo 559336 is an electrical mini-slide featuring an integrated guide and ball screw with a 45 size and a 200 mm working stroke. Designed for compatibility with stepper and servo motors, this component achieves a maximum speed of 1 m/s, a maximum acceleration of 25 m/s², and a repetition accuracy of ±0.015 mm utilizing a ball bearing cage guide. It operates at a 100% duty cycle with a 50 µm reversing backlash, 10 mm screw diameter, 10 mm/U spindle pitch, and position sensing via proximity switch. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 559336
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 559336.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 200 mm
- Size
- 45
- Run. parallelism along Z-axis
- 0.08 mm
- Parallelism
- 0.1 mm
- Reversing backlash
- 50 µm
- Screw diameter
- 10 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Structural design
- Electrical mini-slide | Guide | With ball screw
- Motor type
- Stepper motor | Servo motor
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Noise level
- 60 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Continuous feed force
- 100 N
- Max. driving torque
- 0.415 Nm
- Max. force Fy
- 291 N
- Max. force Fz
- 291 N
- Max. torque Mx
- 14.3 Nm
- Max. torque My
- 12.3 Nm
- Max. torque Mz
- 12.3 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 559336. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
